Description

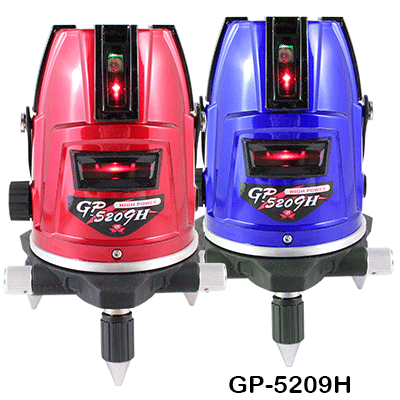

GP-5209H PENDULUM 4V1H1D

FEATURES:

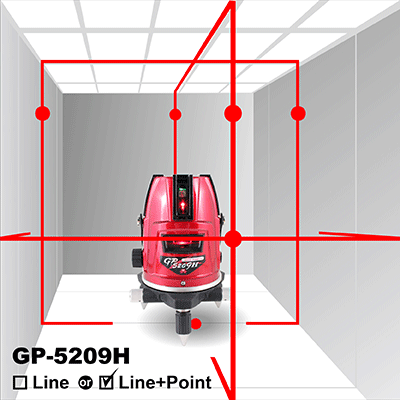

• Four V-lines, one H-line and one floor point are projected in one pass.
• Magnetic compensator ensures more quick self-leveling.
• When using for outdoor, the receiver during the work can be used 50m of radius.
• When the instrument inclines over ±2.5°, the line laser gleams.
• Rotate fine adjustment mechanism, making it easier to find objects correctly.


SPECIFICATION:

• Laser beam: 4V1H1D
• Light sources: 635nm laser diode, down point 650nm
• Anti-water class: IP-54
• Laser safety class: Class 2M
• Accuracy: ±1mm/7m
• Self-leveling range: ±2.5°
• Working range: Radius 50m (with detector)
• Power supply: 3 x AA alkaline batteries / DC adaptor
• Mounting thread: 5/8" X 11, ISO standard
• Operating temperature: -10°C~+40°C
• Size: Φ90x195mm
• Weight: 1.5kg
